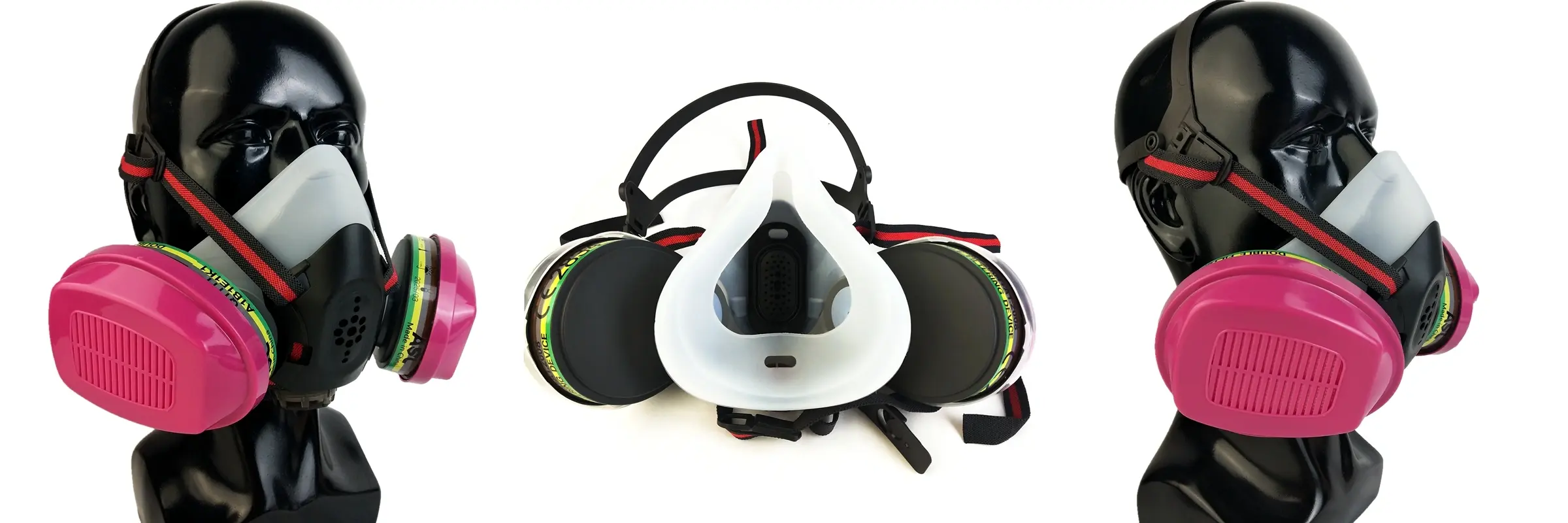

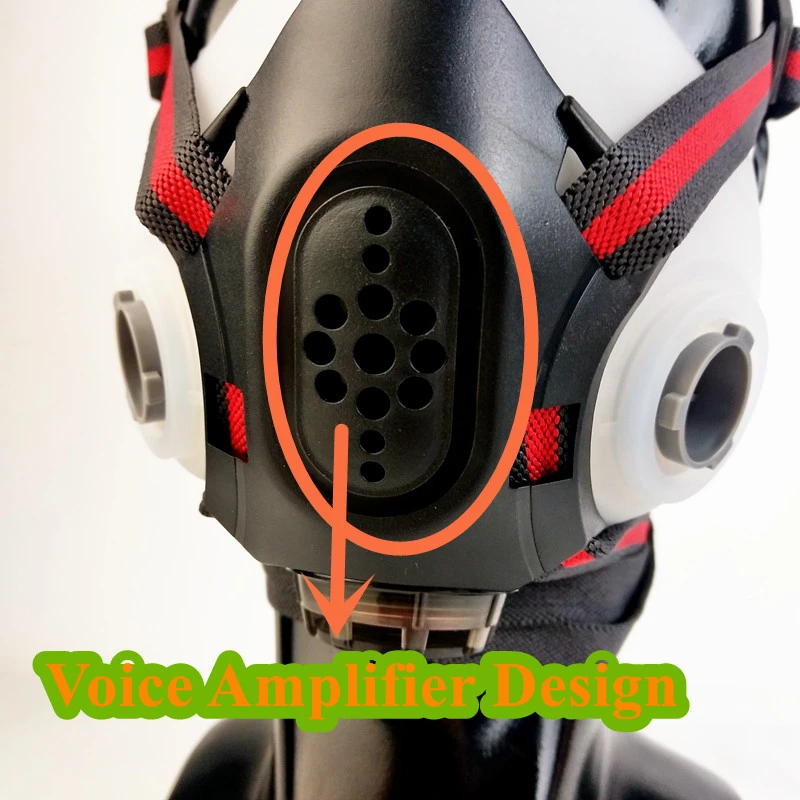

Paint Respirator Mask for Professional Coating & Spray Applications — Silicone Half-Face Respirator with Bayonet Filter System

Xi'An PPE MAX Co., Ltd has been turning out worker safety equipment since 1956. Medical-grade silica gel goes into our paint respirator mask. It weighs 111 g. Measurements come to 125 × 105 × 145 mm. Bayonet half-face models are offered in S, M, and L. On this model you get CE EN 140:1998 certification. Industrial spray painters are the people who use it most. Automotive refinishers buy it as well, and so do coating professionals after steady respiratory protection across a whole working shift.

About Xi'An PPE MAX Co., Ltd

PPE MAX opened its doors in 1956. For over sixty years, personal protective equipment from this company has reached industries around the world. Integrity and progress are two of the values the company states. Cooperation and continuous improvement are the other two. Every respirator in the range is built in-house. CE EN 140:1998 certification also sits on the half-face mask model.

What Is This Product?

This item falls under the personal protective equipment group. Guarding the respiratory system during surface preparation and coating or finishing work is the job it does.

Disposable dust masks get the job done, though in a different way. A half-face respirator built for painting gives you two stages instead. Particulate pre-filters come first, and they catch aerosols and overspray mist. Behind them sit the activated carbon cartridges, which adsorb volatile organic compounds (VOCs). Solvent vapors and acid gases are taken in as well. Dizziness and nausea can hit people who face common coating materials again and again with no protection. Occupational asthma may follow. Long-term neurological harm is another risk. Substances like toluene, xylene, and ketones sit inside these materials. The same holds for isocyanates in 2K polyurethanes and epoxy paints.

Standard Specifications

Product Features

Medical-Grade Silica Gel Facepiece

Silica gel makes up the face skirt. This material is hypoallergenic and thermally stable. In heated spray environments, the skirt keeps its shape. A steady seal follows, and that helps reduce total inward leakage.

Bayonet Filter Interface

The bayonet connection accepts both dust filter cartridges and gas filter cartridges. Filter types can be swapped based on job requirements — particulate-only, organic vapor, or A2P3 combination cartridges.

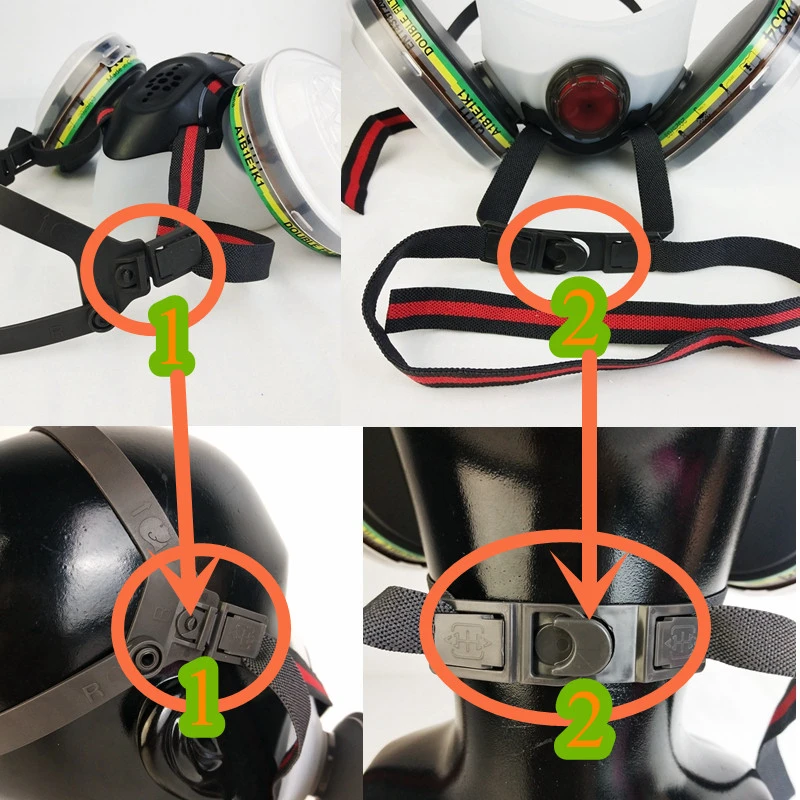

Drop-Down Quick-Release Strap

A drop-down strap lets you lower the mask between tasks. You do not have to take it off completely. Time off-face gets cut this way. Breaks also come with less secondary contamination.

Collapsible Head Harness

The harness folds flat for compact storage and transport without putting pressure on the silica gel seal area.

111 g Paint Respirator Mask Light Build

Weight comes in at 111 g. Face strain stays low at that number. Over long shifts in a spray booth or a cramped coating area, less fatigue builds up.

Applications

Automotive Refinishing and Body Shops

With 2K urethane clear coats and isocyanate hardeners, the seal has to be tight. Cartridge rating must match too. Bayonet fittings take A2P3 combination cartridges. Those are the ones most downdraft spray booths use.

Marine and Heavy Industrial Coating

Confined spaces come up on some jobs. So do high-solid epoxy mastics and anti-fouling paints. There, a pre-filter clips right onto the bayonet system. Heavy particulate loads get caught before they reach the carbon layer.

Architectural and Furniture Restoration

Latex enamels are no problem for this half-face respirator. Neither are oil-based enamels. Airless spraying and power sanding are covered too. On the scale it reads 111 g. Tradespeople and finishing contractors get a comfortable option here. The protection stays. What you skip is the bulk of a full-face unit.

General Industrial Surface Preparation

Sandblasting throws off dust. Chemical stripping and primer application do the same. Mixed together, they create particulate and vapor hazards. One mask covers both threat types, thanks to the dual-cartridge bayonet setup.

Certifications for Paint Respirator Mask

Packing

Packing is done so the silica gel facepiece and the collapsible harness do not deform in transit. Standard export packaging is available too. For packing specs and order details, write to us at bettybing@ppemax.com.

After-Sales Support

We provide technical guidance on Paint Respirator Mask filter cartridge selection and proper mask fit procedures. Product questions and quality concerns can be directed to bettybing@ppemax.com.

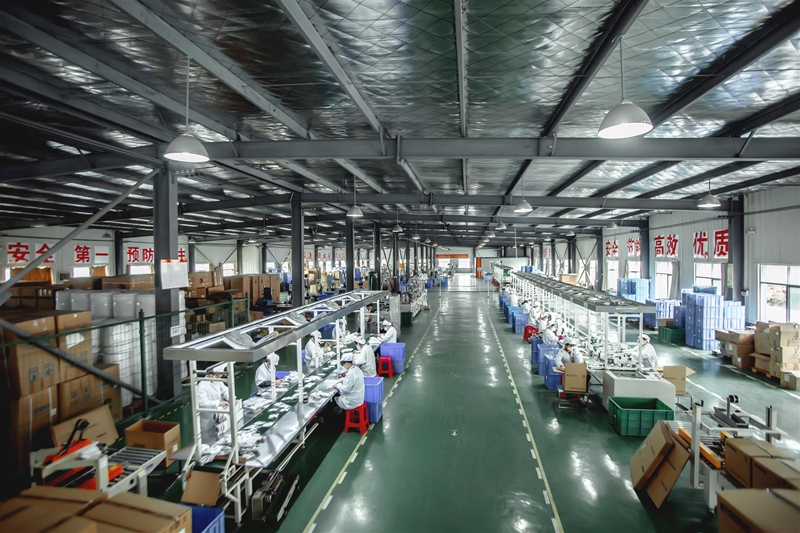

Exhibition and Factory Visits

You will find PPE MAX at international trade fairs for occupational health and safety. A visit to the factory is welcome as well, and you can look over the products in person there. Want samples or a visit? Get in touch and we will set it up.

FAQ

Q: How do I know when to replace the cartridges?

A: Chemical cartridges work by sorbent adsorption. They don't clog the way particulate filters do. If paint or solvent gets past the mask and you can smell or taste it, swap the cartridges right away. For routine work, set a change-out plan that matches the VOC level in your space. Carbon slowly takes up moisture. Once a cartridge has been opened, it goes in the bin after six months. How often you use it doesn't change that.

Q: Can an organic vapor cartridge protect you from isocyanates?

A: Activated carbon does trap isocyanates. The trouble is these chemicals give you almost no warning. You won't smell them at levels that may already be causing harm. When you spray 2K urethane, pick cartridges that have End of Service Life Indicators (ESLI) rated for isocyanates. High concentrations call for a supplied-air respirator (SAR), which is the recommended option.

Q: Can I wash this mask?

A: Yes. Take out all cartridges and pre-filters before anything else. Those parts should never be washed. Wash the silica gel facepiece in warm water (maximum 50 °C) with a mild neutral detergent. Turpentine and other solvents have no place on the mask body. They break down the sealing material over time.

Q: For painting, which pre-filter works better, N95 or P100?

A: Pick P100. Oil will ruin an N-rated filter. Most spray paints put out oil-based aerosols. Over time, those aerosols wear down the electrostatic charge inside an N-rated filter. A P100 pre-filter captures 99.97% of oil and non-oil mists. The carbon cartridge underneath then lasts longer.

Q: How should the mask be stored between uses?

Q: In a workshop, keep this product shut. Leave it open and the activated carbon will keep pulling vapors out of open paint cans or cleaning solvents. Its service life gets shorter. Store it in a sealed bag or an airtight container between uses. Chemicals should stay away from it.

Q: Which kinds of filters can I use with the bayonet interface?

A: The bayonet interface takes dust filter cartridges. It takes gas filter cartridges as well. Painting and coating jobs call for A2P3 combination cartridges as standard. Before use, check the cartridge rating against the specific chemicals in your work environment.
