What Voltage Makes Class 1 Insulating Gloves Fail in the Field?

Founded in 1956, PPEMAX stands as a premier global manufacturer and supplier of full-range personal protective equipment. All our products comply with internationally recognized standards including IEC, ASTM, CE, UKCA, NIOSH and ISO9001. Equipped with a 2,000-square-meter modern production plant, we boast over 25 years of mature OEM & ODM capabilities to deliver one-stop customized solutions covering R&D design through worldwide logistics. Our safety gear is distributed across 134 countries globally. Upholding our core tenet “Safety First, Quality Priority”, we serve as a dependable long-term PPE partner for industrial enterprises around the world.

​​​​​​​

Class 1 Insulating Gloves are designed to protect workers from electrical hazards up to 7,500 volts AC and 11,250 volts DC. However, these gloves can fail when exposed to voltages exceeding their maximum use rating, particularly when subjected to sustained overvoltage conditions or sudden voltage spikes. Dielectric breakdown occurs when the voltage stress surpasses the material's insulating capacity, typically beyond the 10,000-volt proof test threshold, compromising worker safety and increasing the risk of electrical shock or electrocution in the field.

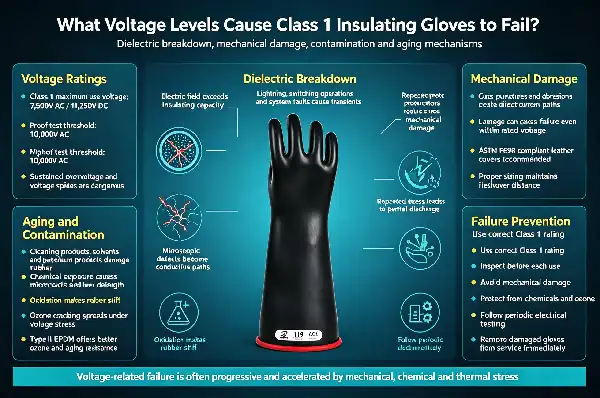

​​​​​​​What Voltage Levels Cause Class 1 Insulating Gloves to Fail?

Knowing how failures happen helps procurement managers and safety officers choose the right Class 1 Insulating Gloves, set up replacement plans, and follow field practices. Voltage-caused failure doesn't always look like a big, sudden breakdown. Often, it's a slow process that's sped up by a number of stressors.

The Physics of Dielectric Breakdown

When the electric field strength inside a shielding material is higher than the material's natural ability to stop current flow, dielectric breakdown happens. If everything goes as planned, this threshold is well above the rated voltage for Class 1 gloves. But things in the field are rarely perfect. Short voltage jumps, like those caused by lightning, switching operations, or system problems, can temporarily push voltage levels well above what they should be for normal operation.

These short-lived events cause stress to build up in certain areas of the rubber structure. Even if a single transient doesn't break something right away, repeated exposure causes damage that gets worse over time. This is called partial discharge. Microscopic holes in the rubber are subject to localized electrical stress, which slowly turns the material carbonized and creates conductive paths that weaken the insulation over time.

Mechanical Damage and Voltage Vulnerability

Most of the time, voltage-related glove failure is caused by physical damage. A cut from rough surfaces, a puncture from a sharp edge, or a cut from bad handling all make direct paths through the insulating barrier. When these kinds of technical problems happen, levels that are well within the rated capacity can still break the thing that is broken.

This weakness is the reason why Class 1 gloves are usually worn with other gloves, like leather protector gloves that can handle mechanical damage. The top layer of leather protects the rubber insulation part from scratches, cuts, and other damage that could make it less safe for electrical use. At PPE MAX, our glove sets come with leather covers that are ASTM F696-compliant and are the right size to keep proper flashover distances while giving you the most mechanical shielding.

Aging, Contamination, and Progressive Failure

Chemical pollution speeds up failure caused by electricity. Some cleaning products, industrial solvents, and petroleum products can damage the molecular structures of rubber, making tiny cracks that lower its insulating strength. Gloves that have been exposed to these contaminants may pass tests right away, but they may not hold up under voltage stress weeks or months later as the chemicals break down.

All rubber items wear out over time, and insulating gloves are no different. Oxidation slowly makes rubber materials harder, which makes them less flexible and causes stress to build up during use. Ozone cracking, which is worse in places with a lot of electrical equipment, makes surface cracks that spread when voltage stress is applied. This is exactly what our Type II EPDM gloves are made to do—they are more resistant to oxidative aging and ozone degradation.

How to Test and Monitor Class 1 Insulating Gloves for Voltage Failure Risks

Electrical safety programs are built around testing protocols that work. At PPE MAX, we stress that quality control during production is just the beginning. Gloves must also be tested and inspected regularly in the field to make sure they keep their protective integrity over time.

Electrical Proof Testing Protocols

According to industry norms, gloves must be electrically tested every six months after they are put to use. For this test, 10,000 volts AC is used for a set amount of time, usually one to three minutes, but this depends on the type of glove and the testing equipment. Technicians watch for leaking current during this test, which would mean that the insulation has broken down or degraded.

To do the tests, you need special tools that can apply precise voltages and watch for tiny current flows that could mean that the insulation is failing. It has been shown that water testing tanks, in which gloves are partially submerged in water and immersed in a conducting bath, can find even the smallest flaws. Because the water inside and outside the glove is conductive, any damage to the insulation is immediately seen as a flow of current that can be measured.

Visual and Mechanical Inspection Techniques

Visual checks every day find problems before they become dangers. Workers should check their gloves for cuts, tears, punctures, foreign objects stuck inside, changes in the texture, and signs of a chemical attack. The air expansion test, which is done before each use, finds small leaks that can't be seen with the naked eye. By pumping up the glove and listening for air escaping or looking for deflation, flaws that could cause the voltage to fail can be found.

Changes in texture, like being stiffer, stickier, or rougher on the surface, can be signs of chemical breakdown or age that aren't always obvious, like cracks or tears. Hardening is a sign of oxidative aging, while swelling is a sign of chemical absorption. No matter what the electrical testing shows, both situations lower voltage resistance and require the item to be taken out of business right away.

Field Testing Technologies

New movable testing tools make it possible to check the quality of insulating gloves on-site, instead of sending them to a central testing facility. These devices cut down on downtime and let you check right away after you think you've been exposed to damaging conditions. They don't replace the full electrical testing that must be done every six months as needed by standards, but they are a good way to make sure that the gloves are still fit for service and help with making decisions based on risk.

At PPE MAX, our technical support team helps clients set up testing procedures that are right for their working setting and level of risk. Industries that have to deal with tough conditions, like high-voltage transmission work, chemically exposed areas, or tasks that pose a lot of mechanical risks, can benefit from testing more often and using better inspection protocols that go beyond what the law requires.

If you're evaluating personal protective equipment suppliers and require batch-specific testing documents before placing an order, PPE MAX is able to provide official Certificates of Analysis, professional laboratory test reports, and product samples for your verification. Feel free to contact our team at marketing@ppemax.com to discuss your sourcing needs and obtain complete documentation for your quality assessment and procurement approval.

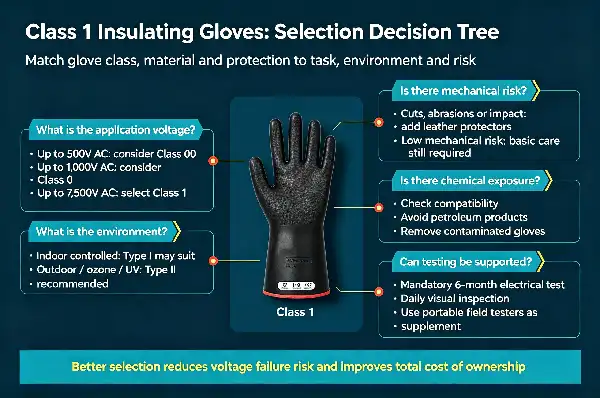

Comparison: Class 1 Insulating Gloves vs Other Electrical Gloves in Voltage Tolerance

To choose the right glove class, you need to know about both the electrical surroundings and the jobs that the workers do. Class 1 Insulating Gloves that are too small or too big can be dangerous, and gloves that are too big or too small may make dexterity worse for no reason. With the voltage rating system, there is a standard way to match protection to the job.

Class 0 vs Class 1: Voltage and Application Differences

Workers can handle voltages of up to 1,000 volts AC with class 0 gloves, which are marked with red labels. These gloves are good for low-voltage jobs like electrical work in homes, light business installations, and upkeep on control circuits. Their lighter design makes them very sensitive to touch, but they don't offer enough protection for medium-voltage tasks where Class 1 gloves are better.

There is a big difference in voltage between Class 0 and Class 1. Class 1 gloves can handle more than seven times as much voltage (7,500 volts AC maximum use voltage). This is because they are used for different things: Class 0 is for branch circuit work, and Class 1 is for distribution systems, industrial power systems, and utility applications that need to deal with higher voltages.

Class 00 for Specialized Low-Voltage Applications

The weakest gloves, with brown marks, are Class 00 gloves, which protect against 500 volts AC. These are used for specialized electronics work, phone repair, and battery service for electric vehicles. Their thinness makes it easier to work with small parts that aren't very stable, but it doesn't protect against the high voltages that are common in industrial and utility electrical maintenance.

The Role of Leather Protectors

When choosing gloves, leather protection gloves should be taken into account as well. Even though they don't protect against electricity, they are necessary to keep rubber insulated gloves in good shape. Good leather protectors can take mechanical impacts, protect the insulating layer below from cuts and scrapes, and keep the insulating layer safe from the physical hazards that come with electrical work.

At PPE MAX, our full sets of gloves come with leather covers that are the right size and don't affect the electrical safety of the insulated gloves. Leather gloves that are too big can shorten the effective flashover distance, and shields that are too small don't offer enough mechanical protection. When you choose the right size, you keep both mechanical and electrical safety margins.

Material Considerations: Type I vs Type II Rubber

Natural rubber (Type I) is more flexible and elastic, which means it is better for tactile sensitivity and less tiring on the hands after long wear. Because of this, Type I gloves are best for tasks that need fine motor control, like working with small wires, precision tools, or doing close inspection work.

Type II EPDM synthetic rubber gives up some flexibility to be more resistant to the environment. Ozone resistance is especially useful for utility work that is done outside, where high-voltage equipment is close to areas with a lot of ozone in the air. When gloves are stored and worn in sunny places, where they get a lot of sun, UV resistance makes them last longer.

Best Practices for Procurement and Safe Use of Class 1 Insulating Gloves

Both worker safety and the total cost of ownership are affected by strategic buying choices. At PPE MAX, we help purchasing managers and safety workers find the best suppliers, check the quality of their products, and handle their entire lifecycles so that both safety and cost are maximized.

Supplier Selection and Quality Verification

The most trusted goods come from certified producers with clear quality control systems. Look for suppliers that keep their ISO 9001 certification, show that they follow ASTM and IEC standards through third-party testing, and provide full documentation that includes test results that are specific to each batch. Customers are welcome to visit our factories in Xi'an, China, and we encourage them to do so. This builds trust in our manufacturing methods and quality control procedures.

Authorized wholesalers do more than just make products available; they add value. They provide the right storage conditions to keep the integrity of the gloves, offer technical advice to help with the right choice, and make it easier to file warranty claims when problems arise. Buying through illegal channels means getting fake goods, stock that hasn't been properly stored, or gloves that are getting close to the end of their shelf life. These are all safety risks that put workers at risk, no matter how much money is saved.

Large businesses can save money with bulk purchasing programs, but they need to be very careful about managing their shelf lives. Gloves that haven't been used have a twelve-month shelf life before they need to be electrically tested. This makes it hard for businesses that don't use a lot of gloves to quickly keep track of their inventory. Our team works with procurement departments to set up ordering patterns that take into account both number savings and shelf life limits. This way, both cost and safety are maximized.

Storage and Maintenance Protocols

When gloves are stored correctly, they last longer and keep their electrical protection. Gloves should be kept in protected bags that keep UV light out and away from heat sources and machines that make ozone. Extreme heat speeds up aging, and extreme cold can make rubber brittle and more likely to crack. The storage area should stay at a reasonable temperature.

Cleaning rules are very important. Mild soap and water can get rid of most contaminants without hurting rubber materials. Cleaners that are based on petroleum, strong solvents, and harsh detergents all break down the molecular structures of rubber, which lowers its voltage resistance. Gloves should be washed well and dried away from direct heat or sunlight after being cleaned.

Training and User Competency

The quality of the equipment doesn't matter if people don't know how to use it correctly. In-depth training programs teach people how to do inspections, put on clothes correctly, spot signs of damage, and know what to do if they think someone has hacked their computer. People who use insulated gloves need to know that they are special safety gear that needs to be handled differently than regular work gloves.

The whole glove system should be emphasized during training, including cotton layers to soak up sweat and keep rubber from breaking down, rubber insulating gloves for electrical safety, and leather guards for mechanical safety. Each part is necessary for the system to work, and leaving out any part makes the system less effective as a whole.

At PPE MAX, our technical support team offers training materials, user guides, and advice services that help safety programs work well. We know that selling gloves is only the start of our relationship with clients. Ongoing help is what makes sure that workers are safe when using the tools they depend on every day.

Conclusion

Class 1 Insulating Gloves fail because they are overloaded with too much voltage, either over time from steady overvoltage or from short-lived spikes, or because they wear down over time from damage, chemical poisoning, and exposure to the environment. Understanding these failure mechanisms helps people make smart decisions about what to buy and how to keep everyone safe. When you do daily eye checks and electrical tests every six months, you can spot damage before it becomes dangerous for workers. The best way to protect workers in utility, industrial, and building settings where medium-voltage dangers require reliable electrical insulation is to choose the right provider, store the equipment correctly, and train users on how to use it.

FAQ

1. How quickly can voltage exposure cause glove failure?

When something fails relies on how strong the electricity is and how good the gloves are. When voltages much higher than 7,500 volts are applied, the dielectric can break down right away. But voltages at or just above the rated capacity can damage over time if they are exposed to them over and over again. Failure can happen over weeks or months as partial discharge slowly makes electrical paths through the insulation material.

2. Can gloves recover from minor voltage-induced damage?

Damage caused by voltage is permanent and gets worse over time. Once partial discharge starts breaking down a material, the process will keep going even if the material is not exposed to any more voltage. If gloves show any signs of voltage stress, like darkening, changes in texture, or failed electrical tests, they need to be taken out of service right away and replaced because they can't be fixed or brought back to their original safe state.

3. What environmental conditions accelerate voltage failure risks?

When ozone is exposed, especially when it is very close to high-voltage equipment, it causes surface cracks that lower the voltage resistance. UV light breaks down polymer chains, which lowers the insulating strength. Chemicals from petroleum products or solvents can damage the molecular structures of rubber. Extreme temperatures change the properties of materials. For example, heat speeds up the aging process, while cold makes materials less flexible. As long as the glove is stored properly and away from these stressors, it will continue to protect against voltage.

Partner with PPE MAX for Reliable Electrical Safety Solutions

PPE MAX is ready to be your trusted manufacturer and supplier of Class 1 Insulating Gloves. We offer proven protection and have been making high-quality gloves for 65 years. Our strict adherence to ASTM D120 and IEC 60903 standards, global supply chain that serves 134 countries, and thorough quality control make sure that you get reliable, certified goods that meet the strict safety requirements of utility, industrial, and building uses. We can customize your order, our bulk prices are reasonable, and we offer full technical support, including training materials and in-field advice. Email our team at marketing@ppemax.com to talk about your unique voltage protection needs and find out how our knowledge can help your electricity safety programs.

References

1. American Society for Testing and Materials. "ASTM D120-20: Standard Specification for Rubber Insulating Gloves." ASTM International, West Conshohocken, PA, 2020.

2. International Electrotechnical Commission. "IEC 60903:2002+AMD1:2022: Live Working - Electrical Insulating Gloves." IEC Standards Publication, Geneva, Switzerland, 2022.

3. Occupational Safety and Health Administration. "29 CFR 1910.137: Electrical Protective Devices." U.S. Department of Labor OSHA Standards, Washington, DC, 2021.

4. Institute of Electrical and Electronics Engineers. "IEEE Guide for Field Testing of Shielded Power Cable Systems Using Very Low Frequency (VLF)." IEEE Power and Energy Society, New York, NY, 2019.

5. National Fire Protection Association. "NFPA 70E: Standard for Electrical Safety in the Workplace." NFPA Standards Council, Quincy, MA, 2021.

6. Karady, George G. and Holbert, Keith E. "Electrical Energy Conversion and Transport: An Interactive Computer-Based Approach." IEEE Press Series on Power Engineering, Wiley-Interscience, Hoboken, NJ, 2013.
