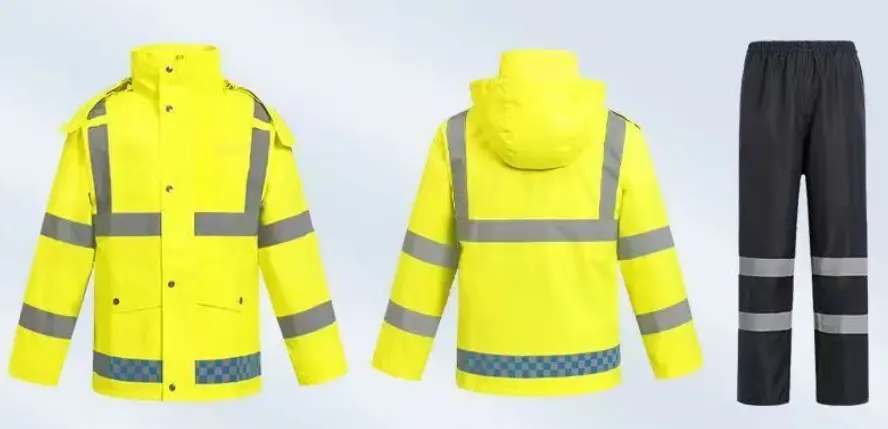

Split Waterproof High Vis Rain Jacket

Split Waterproof High Vis Rain Jacket for Industrial & Road Safety

Xi'An PPE MAX Co., Ltd has been making safety apparel for working people since 1956. The Split Waterproof High Vis Rain Jacket is built from 0.22mm Oxford cloth. A PVC adhesive coating makes it waterproof. Pick fluorescent green, fluorescent orange, or black. Sizes go from L up to XXXXL. The set is two separate pieces, jacket and trousers. A worker gets free movement in it. Rain and poor visibility stay outside, so the body stays dry.

About Xi'An PPE MAX Co., Ltd

PPE MAX workshops have turned out occupational protective clothing since 1956. Road safety is one sector we serve. Port logistics, mining, and utilities are others. Our manufacturing background covers them all. Goods go out to several export markets. Every jacket gets a quality inspection before it leaves.

What Is This Product?

This rain jacket is a two-piece PPE set. A high-visibility jacket comes with separate trousers. When light is poor or the weather turns, workers stay visible. They stay dry too.

A coverall cut as one piece stays in one piece. This set comes apart. When the temperature shifts, a worker can pull the jacket off on its own. The trousers stay where they are. Movement stays easy too, even through heavy physical work. Put both pieces on as a full set and the garment meets Class 3 visibility.

This garment was designed around EN ISO 20471 for visibility and EN 343 for rain protection. Two risks fall as a result. Hypothermia is one of them. The other is the chance of a vehicle-related accident on outdoor jobs.

Standard Specifications

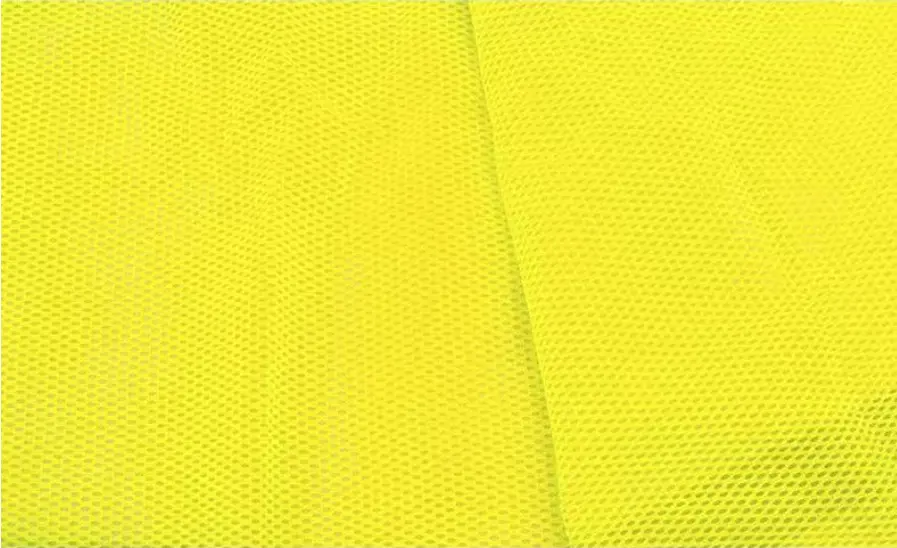

0.22mm Oxford Cloth Fabric

Weight stays low with the 0.22mm Oxford cloth. Abrasion resistance stays high. Repeated use does not throw off its shape. The PVC adhesive coating also bonds to it firmly.

PVC Adhesive Waterproof Layer

A water barrier you can count on comes from the PVC coating, which sticks straight to the fabric surface. Rain that keeps coming down, or spray thrown up by traffic, will not soak through this build.

Taped Seam Construction

All seams are heat-sealed with hot-melt tape, blocking water ingress through needle holes — a common failure point in stitched-only seams.

High-Visibility Colors

Black, fluorescent green, or fluorescent orange are the colors you can get. The chromaticity coordinates of the fluorescent background materials are verified under EN ISO 20471 and ANSI/ISEA 107. That backs up how well they show up in daylight.

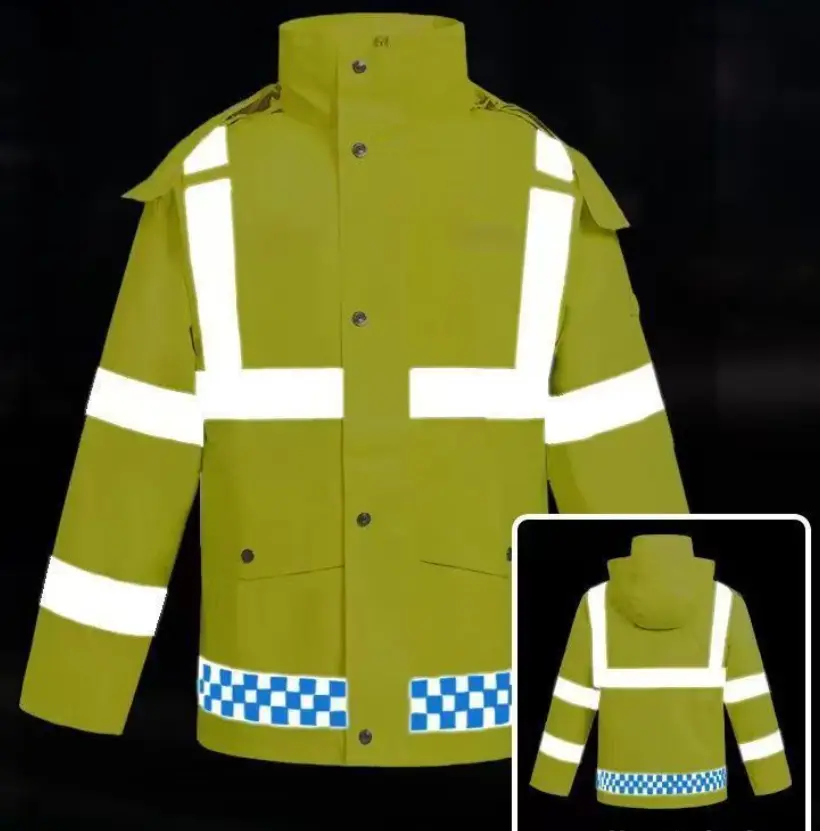

Reflective Split Waterproof High Vis Rain Jacket Tape

Tape that throws light back is stitched over the jacket and the trousers. We ran it through 25 to 50 wash cycles as set out in ISO 6330. The tape still comes out with a retro-reflective coefficient above 100 cd/(lx·m²).

Split Two-Piece Configuration

Jacket and trousers are two single pieces. That leaves room for more than one way to wear them. On a break, or once the day warms up, the jacket can come off and the lower body is still covered.

Advantages

• Fabric bunching around the midsection is avoided with the two-piece design. That is a real plus for machinery operators and drivers who sit for long stretches
• If something gets caught in an emergency, the jacket comes off fast. Serious injury risk drops as a result
• Airflow is easier to control with the open split design than with full coveralls. That helps keep heat stress down while people are working hard.
• The trouser waistband accommodates tool belts more comfortably than long-coat designs
• PVC adhesive coating resists mud and oil contact, extending usable life in dirty field environments

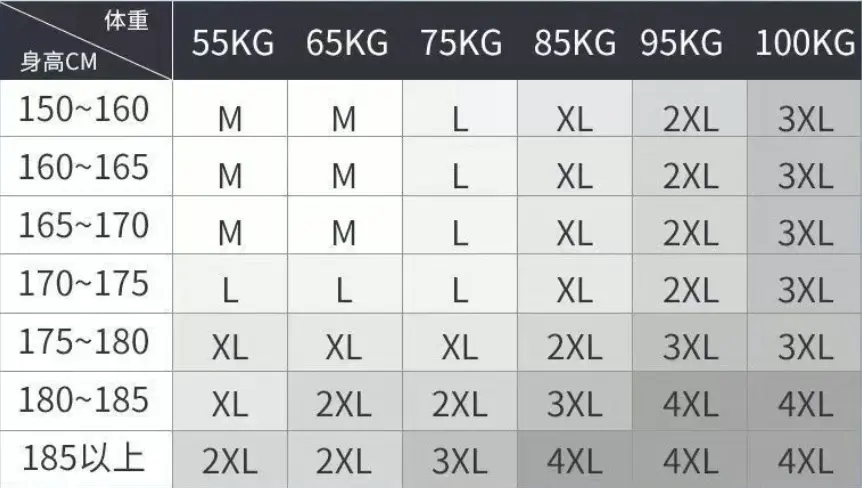

• Five sizes from L to XXXXL cover a wide range of adult body types

Applications for Split Waterproof High Vis Rain Jacket

Highway Construction and Traffic Management

Workers wearing the full set can reach Class 3 visibility. The waterproof coating handles rain and road spray from high-speed vehicles. The split trouser design is more practical for tool belt use than a standard long coat.

Offshore and Port Logistics

Maritime environments involve horizontal rain and strong wind. In a man-overboard situation, the two-piece suit is easier to remove than a waterlogged one-piece coverall, which may reduce drowning risk.

Mining and Utilities

Open-pit and underground workers benefit from the jacket's resistance to mud and oil contact. Machinery operators find the split configuration more comfortable during long seated shifts.

Why Choose Us

• Over 65 years of manufacturing experience in occupational protective clothing
• Size range from L to XXXXL to cover a wide workforce
• Multiple color options — fluorescent green, fluorescent orange, and black — for site-specific visibility requirements
• Custom logo placement available within certification surface-area limits
• Pre-shipment quality inspection on every batch

Standards Reference

This product is developed in reference to the following standards:

• EN ISO 20471: Clothing that keeps you visible at work
• EN 343: Protective clothing against rain
• ISO 811: Hydrostatic resistance testing method
• ISO 6330: Textile washing and drying procedures for reflective tape testing

Packing

Standard export packaging is used for bulk B2B orders. Custom packing and labeling options for the Split Waterproof High Vis Rain Jacket are available upon request.

After-Sales Support

• Pre-shipment quality inspection available on request
• Defective product replacement policy in place
• Technical support for standard-related documentation
• Each order ships with washing and care instructions. Follow them and the high-visibility traits hold up longer.

​​​​​​​​​​​​​​​​​​​​​​​​​​​​

FAQ

Q: Why is a split rain jacket a safer pick than a one-piece rain coverall?

A: If something grabs a worker in an emergency, This product comes off quicker. Air moves through better as well. That lowers the heat stress risk you get with full coveralls. The jacket also comes off by itself, so the lower-body protection stays where it is.

Q: If my company logo goes on the jacket, does the certification change?

A: Yes. Limits do exist, though. A printed logo takes away fluorescent background area. Certification rules set a maximum for print that does not comply. Cross roughly 10 to 15% of the background surface and the garment can fall from Class 3 to Class 2 visibility compliance.

Q: What decides how long the waterproof coating lasts?

A: Storage is what counts most with these jackets. Coating breaks down faster in damp air. Direct sun does the same. So does poor folding. Put jackets somewhere cool and dry, away from UV light. They will last longer that way.

Q: Why do some jackets leak even if the fabric is rated waterproof?

A: Most leaks start at seams that fail. The fabric is not the cause. Water slips through needle holes that were never taped, even if the base fabric has a coating. Check the product specification before ordering. Make sure heat-sealed taped seams are included.

Q: How should these jackets be washed so the high-vis properties stay intact?

A: Turn them inside out. Wash below 40°C. Use non-biological detergent only. Keep bleach and fabric softener out of the wash. Bleach breaks down the retro-reflective glass beads on the tape. That cuts night-visibility performance.

Q: Which sizes can I choose from, and do you take bulk orders?

A: Sizes run from L up to XXXXL. Bulk orders are fine. Talk your order through with our team. Tell us the quantity. Colors and custom specs? Those are no problem either.

Contact Us

For sourcing inquiries about our Split Waterproof High Vis Rain Jacket, contact us at bettybing@ppemax.com. We respond to all trade inquiries.

​​​​​​​
