1D-Ring Fall Protection Harness

1D-Ring Fall Protection Harness for General Construction & Maintenance — Single Dorsal D-Ring Safety Harness

Fall protection gear has come from Xi'An PPE MAX Co., Ltd since 1956. One dorsal D-ring sits on the 1D-Ring Fall Protection Harness, and the webbing is 45 mm polyester. Standards met: ANSI Z359.11, EN 361, CSA Z259.10, and OSHA 1910.140 / 1926.502. Over 15 kN is the breaking strength. Nothing blocks the front. Tools and movement on site get the room they need. General work on construction crews is what it is built for. Roofers wear it. So do facility maintenance teams.

Xi'An PPE MAX Co., Ltd: This Product Manufacturer & Supplier

PPE MAX has focused on worker safety since 1956 — more than six decades of fall protection manufacturing. We supply B2B buyers, distributors, and safety procurement teams across global markets. Our production supports both standard stock configurations and custom specifications, with documentation packages available for compliance and procurement teams.

What Is This Product?

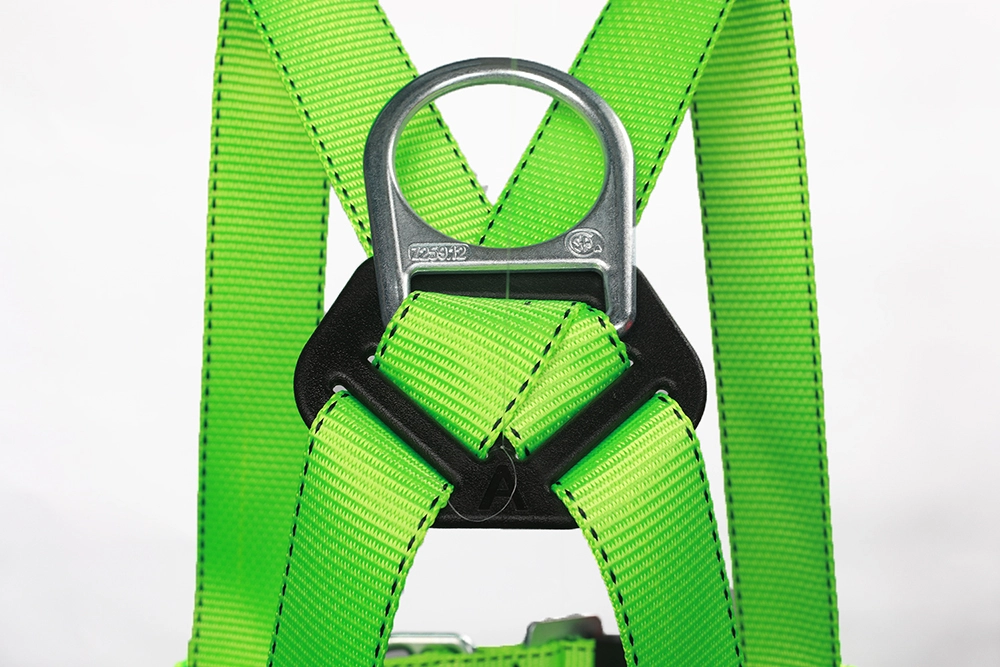

This product is a full body harness (FBH) engineered as the core component of a Personal Fall Arrest System (PFAS). It features a single dorsal D-ring positioned between the shoulder blades, which keeps the worker upright during post-fall suspension.

This setup works for fall arrest and travel restraint only. Suspension work and rope access are not covered. With no chest or side D-rings, there is less hardware to snag in confined industrial spaces. The harness also weighs less. That means less fatigue during long shifts.

Standard Specifications

Key Features

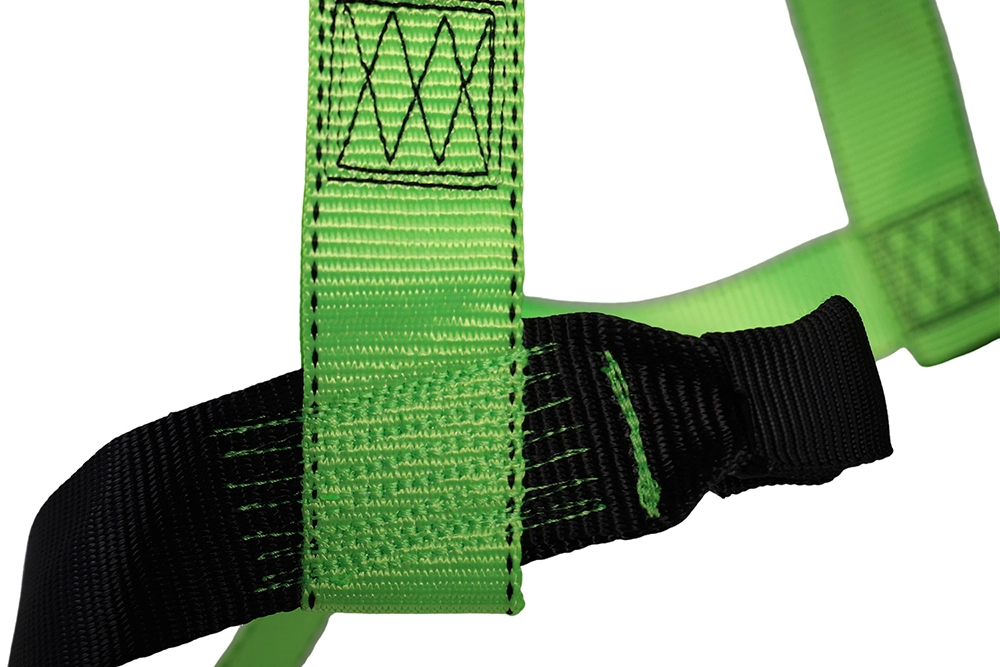

Contrasting Color Stitching: Load-bearing seams carry stitching in a high-contrast color. Pre-shift visual checks pick up wear fast. Damage and cuts show up too. Nobody needs to pull the harness out of storage to spot it.

Fall Arrest Indicators. Inside the dorsal strap, near the D-ring, sit rip-stitch or fold-over load indicators. Stitches tear open once fall arrest forces hit the harness. A "DO NOT USE" tag may show up as well. That signal is instant and clear. Right away, the harness has to come out of service.

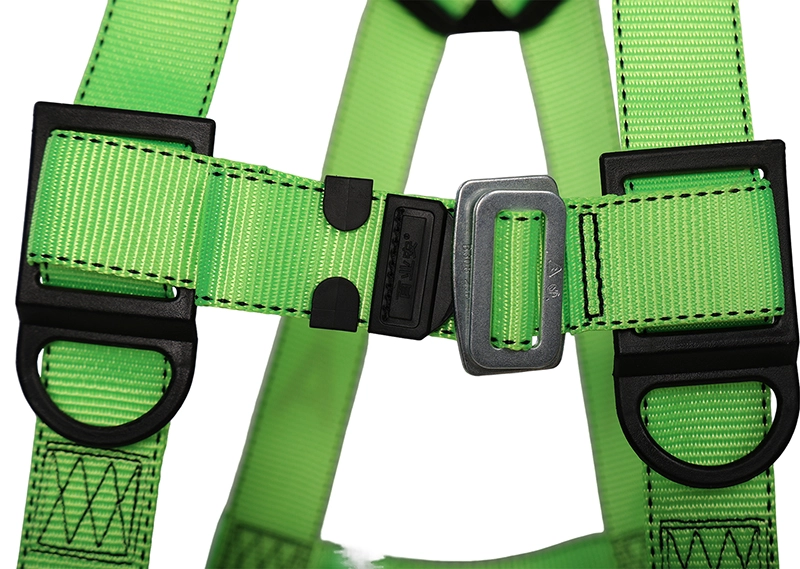

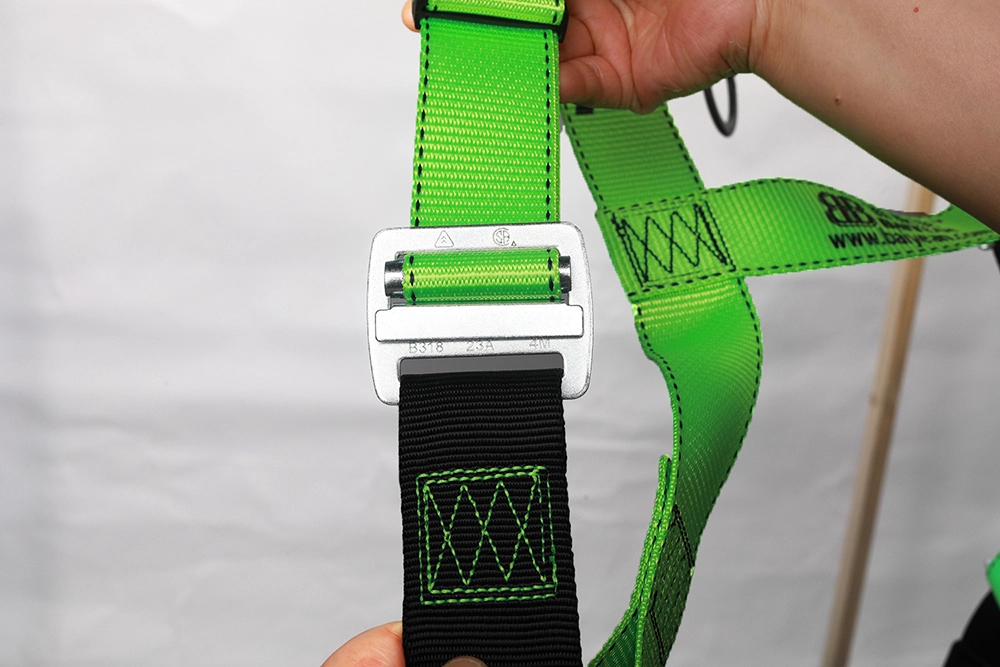

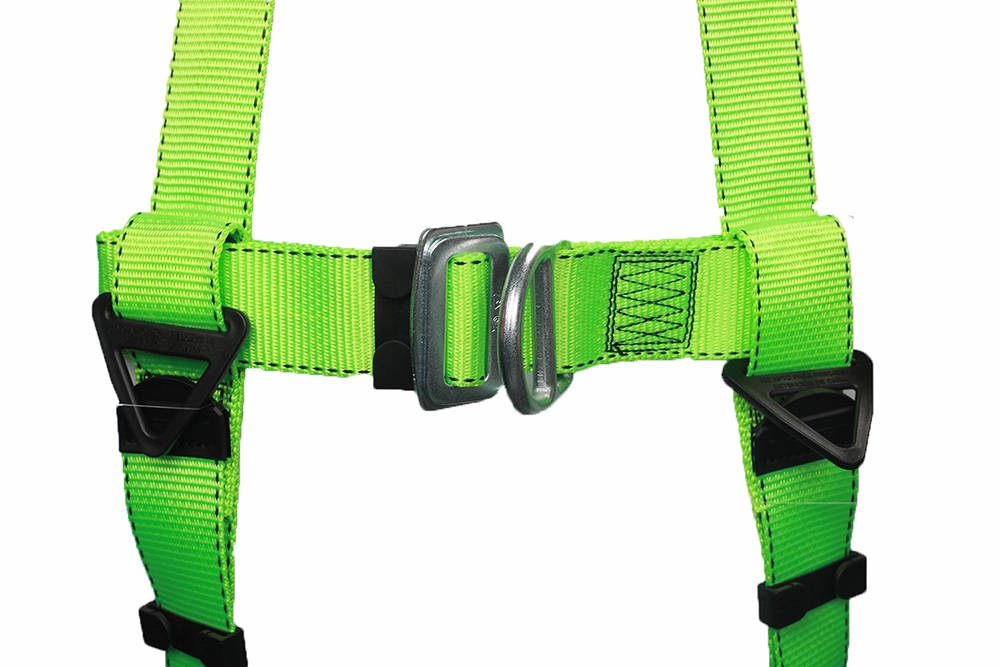

Pass-Thru Buckles: The chest and leg buckles use a pass-thru design. Putting the harness on gets faster, and the connection stays secure. Nothing about the mechanism is complex. That cuts the chance of a strap running the wrong way during dress-out.

Fully Adjustable Fit: The shoulder straps adjust on their own. So do the chest straps and the leg straps. Body types differ a lot, and this range covers them. Each user gets the same firm fit, and it holds from one job site to the next.

Material & Hardware Performance

UV does little harm to the 45 mm polyester webbing, and it soaks up very little water. Some harnesses, including a 1D-Ring Fall Protection Harness, stay outside for a whole working season. That is where this counts. Rain and sun both hit them, and the temperature swings as well.

A zinc or cadmium coating goes on the steel hardware. Salt spray testing follows the ISO 9227 standard. After 48 hours or more in the spray, no red rust should appear. This makes the harness a fit for marine environments. Outdoor construction and high-humidity facilities also work.

Applications

Mobile Elevating Work Platforms (MEWPs) & Scissor Lifts: A short lanyard clips right onto the dorsal D-ring. Movement stays limited to the platform. With just one ring, hardware stays minimal in a tight work area.

General Roofing & Construction: Vertical lifelines work with this harness. Self-retracting lifelines (SRLs) do too, on flat roofs or roofs with a low slope. Framing work is not blocked by the clear front profile. Waterproofing and tiling are not affected either.

Facility Management & Light Maintenance: A good fit for ladder climbing systems and for reaching high racks in a warehouse. With the rear attachment point, the lanyard stays clear as the worker moves forward.

Quality & Compliance for 1D-Ring Fall Protection Harness

PPE MAX puts its harness models through destructive and non-destructive tests. Static pull tests reach 5,000 lbs. Drop tests use a 100 kg mass and show that arrest forces stay under 8 kN. Every harness also passes automated optical inspection before it ships. Then manual webbing checks look for skipped stitches, cuts, burns, and chemical degradation.

Custom labels are available. Size configurations can be ordered too. Procurement and regulatory teams can get compliance documentation packages.

Certifications

Each harness is made to meet ANSI Z359.11. The same goes for OSHA 1910.140 / 1926.502, CSA Z259.10, and EN 361. Static strength gets covered. Dynamic performance and hardware corrosion resistance are covered too. Fall arrest work in North American and European markets follows these rules.

Packing

Each product is packed on its own. This protects the webbing and hardware in transit. Bulk export cartons are ready for distributor and wholesale orders. Custom packaging and labeling can be requested.

After-Sales Support

PPE MAX backs every order with after-sales help. Inspection guidance falls under that. So does compliance paperwork, along with questions about replacements. Got a technical 1D-Ring Fall Protection Harness question about your own application? Or one about procurement requirements? Reach out to our team directly.

FAQ

Q: Can This product be used for suspension work?

A: No. This harness is designed strictly for fall arrest and travel restraint. Hands-free suspension requires a harness with side D-rings — typically a 3D or 5D configuration — to support the hips correctly.

Q: What is the maximum service life?

A: First use starts the clock. From that date the industry standard is 5 years, as long as the harness passes pre-use inspections. Some settings cut that lifespan a lot. Welding zones are one. Areas with chemical exposure are another.

Q: How can I tell whether the harness has already caught a fall?

A: Check the load indicators on the dorsal straps near the D-ring. If stitches are torn or a "DO NOT USE" tag is visible, remove the harness from service immediately and do not return it to use.

Q: What weight is the standard unit rated for?

A: On most ANSI-compliant models, the working range is 130–310 lbs (59–140 kg). Body weight, clothing, and tools all count toward that figure. Pair a heavy-duty version with compatible energy absorbers and it goes up to 420 lbs (190 kg).

Q: Can a lanyard be attached to the shoulder strap?

A: No. Fall arrest forces have to go on the dorsal D-ring only, the one marked for that job. Shoulder straps and webbing loops are not for that use. Skip them unless the maker has clearly labeled those points as approved attachment points.

Q: What corrosion protection do the hardware components have?

A: Steel components are zinc or cadmium plated and tested to ISO 9227 salt spray standards, with no red rust after a minimum of 48 hours — suitable for outdoor and marine environments.

Contact Us

To request pricing, samples, or technical information about our 1D-Ring Fall Protection Harness, contact us at bettybing@ppemax.com. We respond to B2B and distributor inquiries directly.
