Self Priming Full Facepiece Respirator

Self Priming Full Facepiece Respirator for Industrial Protection

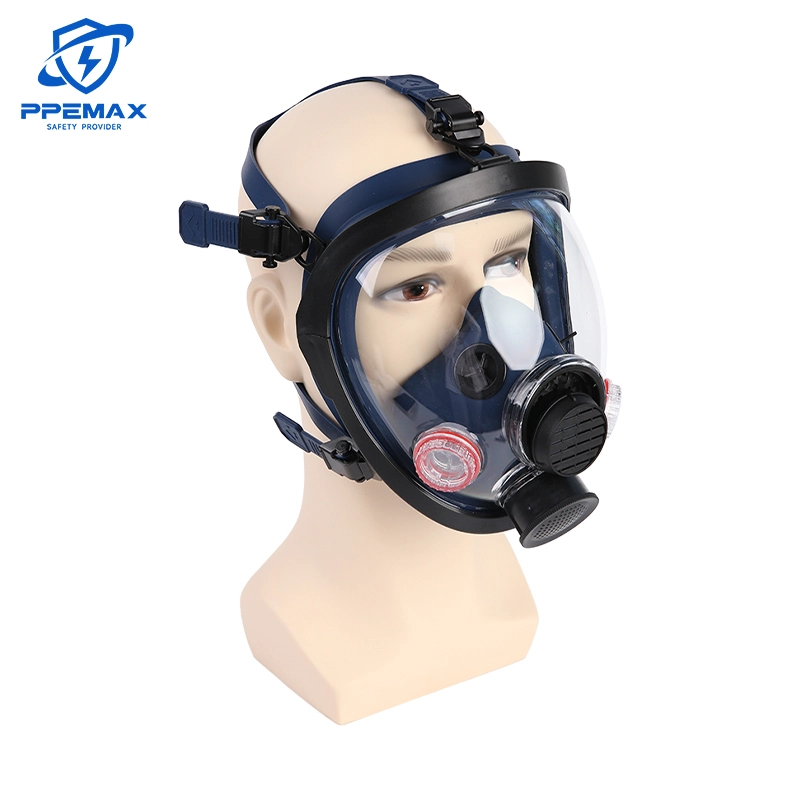

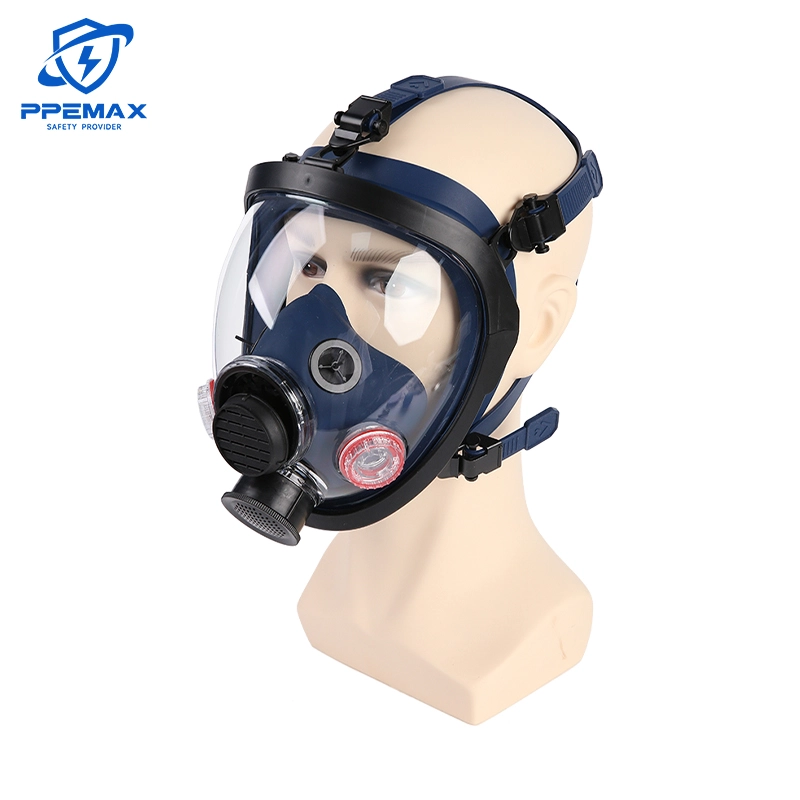

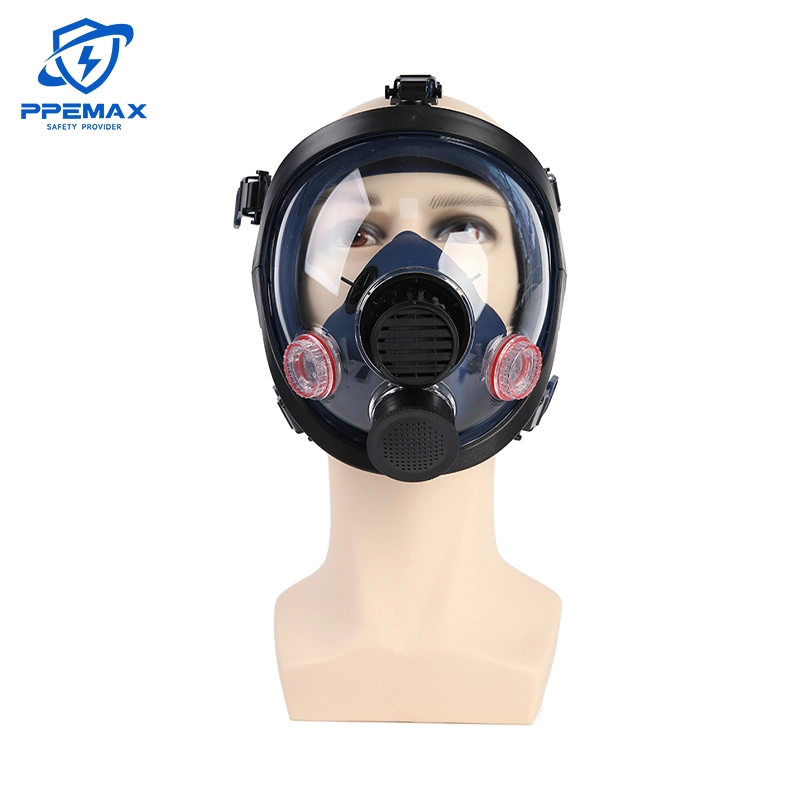

Xi'An PPE MAX Co., Ltd has been manufacturing respiratory protection equipment since 1956. The Self Priming Full Facepiece Respirator in our product line is built with a silicone facepiece, a wide panoramic polycarbonate (PC) lens, and a five-point adjustable headband. It supports both Bayonet-Style and RD40 cartridge connectors, giving procurement teams flexibility across multiple filtration systems. With a monthly production capacity of 3,000 units and an MOQ of 100 pieces, we serve both small-scale procurement and recurring industrial supply needs.

Xi'An PPE MAX Co., Ltd: Respirator Manufacturer Since 1956

PPE MAX started trading in 1956. The aim back then was simple: keep people safe in dangerous workplaces. Nearly 70 years later, that aim still shapes every unit we make. It guides how each one is designed and built. It also decides how each one gets checked before it leaves our plant.

Our buyers come from other businesses. Their sectors range from petrochemicals and pharma to construction and industrial painting. Some order 100 units just to test us out. A repeat supply every month is what others are after. Whichever group they fall into, our production process is built to turn out the same result on every run.

What Is This Product?

This product sits in the air-purifying respirator (APR) family. Coverage runs from the chin up to the forehead. That fit gives you a sealed barrier against dangerous air.

Under OSHA rules, a half-mask respirator gets an Assigned Protection Factor (APF) of 10. A full facepiece respirator is rated 50. That gap matters. In places where contaminant levels run far higher than a half-mask can handle, a full facepiece still holds up.

Eyes and lungs are covered by a single unit. Breathed-out air goes into an oral-nasal cup inside, then leaves through the exhalation valve. The lenses stay clear. Hard physical work does not change that.

Use it where eye irritants sit in the air or chemicals could be absorbed. Some settings need a face seal with no gaps, and it fits those too.

Standard Specifications

Key Features

Silicone Facepiece

Splashes of corrosive liquid cannot get through the silicone body. Long wear does not loosen the seal. Skin stays comfortable too. Wider temperature swings do not cost silicone its flexibility. Natural rubber is likelier to irritate the skin.

Wide Panoramic PC Lens

The polycarbonate lens gives you a wide field of vision. Nothing looks warped when you look through it. Every lens is tested for prismatic power. Dizziness and depth-perception errors stay out of precision work because of that test.

Five-Point Adjustable Headband

Pressure from the headband of a Self Priming Full Facepiece Respirator spreads evenly over the head. Quick adjustment is possible too, even with gloves on.

Dual Cartridge Connector System

Bayonet-Style or RD40 connectors, either one works. On Bayonet-Style connectors you twist and lock them in place. That style shows up a lot in Asian and North American markets. RD40 connectors follow the European EN 148-1 thread standard. Both options fit one facepiece. So you can pair it with the approved cartridges already on your shelf. You do not need a separate facepiece model.

Integrated Oral-Nasal Cup

Inhaled and exhaled airflow stay apart thanks to the internal nose cup. CO₂ buildup in the breathing zone drops as a result. The lens also stays clear when you are doing high-activity tasks.

Exhalation Valve

Back-leakage testing on the valve blocks low-pressure inflow of contaminants. Heat and moisture get out fast too. Wearer fatigue over long shifts goes down.

Self Priming Full Facepiece Respirator Applications

Petrochemical & Chemical Manufacturing

During reactor cleaning and pipeline maintenance, this respirator protects workers from VOCs, ammonia, and formaldehyde. Chemical splashes happen often in those settings. The silicone body resists them.

Industrial Spray Painting & Coating

Isocyanates are found in polyurethane and epoxy hardeners. The lungs take a hit from these, and the eyes get badly irritated too. Full facepiece protection is a must for this kind of work. Gaps stay open when you wear a half-mask with safety glasses. Fine aerosol mists find their way through those gaps.

Asbestos Abatement & HazMat Remediation

Microscopic asbestos fibers or lead dust can be stirred up during decontamination work. Conditions like these call for an APF of 50 and full facial coverage.

Pharmaceutical Production

You would use this when working with active pharmaceutical ingredients (APIs) or mold spores. For cross-contamination control, the facepiece can be built into hood and helmet systems.

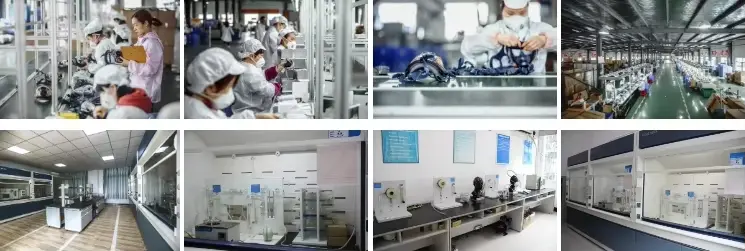

Quality Control

Our quality control process includes Total Inward Leakage (TIL) testing — face seal and exhalation valve leakage must not exceed 0.05% under sodium chloride aerosol conditions. Head harness pull tests verify strap strength above 150N to confirm durability under emergency-use conditions.

These checks belong to our normal production verification process. They are not one-off Self Priming Full Facepiece Respirator inspections.

Certifications

Every product we make follows the occupational safety standards that apply to it. For the newest certification documents for your region or application, contact us directly.

After-Sales Support

• Technical guidance on cartridge selection and connector compatibility
• Replacement parts available for headbands and valves
• Documentation support for compliance and procurement processes
• Order tracking and product inquiries handled via email at bettybing@ppemax.com

​​​​​​​

FAQ

Q: In what ways are Bayonet-Style connectors different from RD40 connectors?

A: A Bayonet-Style connector locks with a twist. You will see this type a lot in Asia and North America. For RD40 connectors, the thread follows the European EN 148-1 standard. Either type fits this facepiece. Cartridges you already have approved still work.

Q: Can I use this respirator when I spray coatings that contain isocyanate?

A: Yes. Isocyanates can damage your lungs. Eyes get badly irritated too. That is why This product suits the job better than a half-mask worn with safety glasses.

Q: Why does silicone beat rubber on the facepiece?

A: Chemicals are less of a problem for silicone. Wide temperature swings don't stiffen it. And over a long shift, skin tends to react less to silicone than to natural rubber.

Q: Once I'm wearing the respirator, what does an APF of 50 mean?

A: Say the respirator has an APF of 50. It cuts your exposure to a contaminant by a factor of 50. The air around you sets the baseline. So it works in spaces where contaminant levels run as high as 50 times the occupational exposure limit that applies.

Q: Can you handle OEM work or custom labeling?

A: Want your own labels and packaging? That is no problem. Let us know what you have in mind. We will send you the details. The size of your order sets the price we quote.

Contact Us

To request product specifications, certification documents, or a quote for the Self Priming Full Facepiece Respirator, reach our team at bettybing@ppemax.com. MOQ starts at 100 units.
