Half Respirator Mask with Goggles – Respiratory and Eye Protection for Industrial Use

Safety gear has been made by Xi'An PPE MAX Co., Ltd since 1956. The half respirator mask with goggles puts a CE-certified elastomeric half mask and a goggle unit into one reusable piece. You get breathing and eye protection together. Two facepiece sizes are offered, M and L. Bayonet-style filter cartridges swap in and out. Its look matches the 6200-style mask that many crews already wear. Fit feels familiar, and the price comes straight from the factory.

About Xi'An PPE MAX Co., Ltd

PPE MAX got its start in 1956. That was nearly 70 years ago. Industrial buyers, distributors, and safety procurement teams around the world have used our protective gear. We make it and sell it direct. No middleman means factory prices. Ask a technical question and you get a straight answer. Steady supply comes with it too.

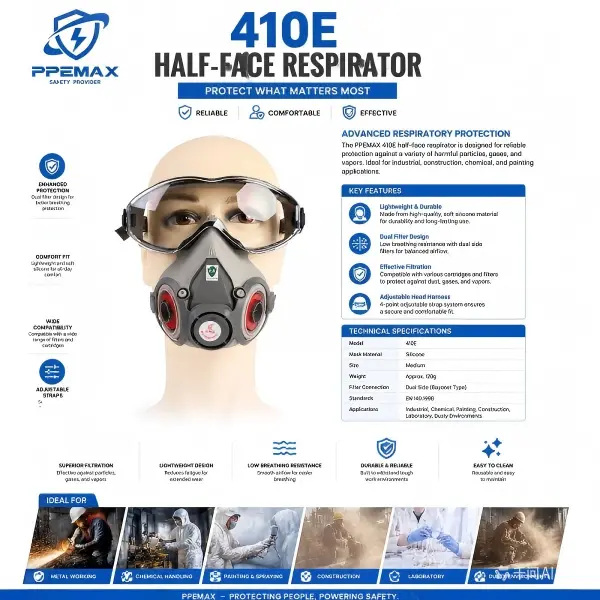

What Is This Product?

A tight fit against the face is what this respirator gives. The nose and the mouth both sit enclosed. Eye cover comes from a goggle unit built into the same shell. Disposable single-use masks work another way. On this model, the facepiece is elastomeric and can be used again. Liquid silicone rubber (LSR) or thermoplastic elastomer (TPE) forms it. That facepiece hugs the contours of the face closely. Total inward leakage stays low because of this.

Cartridges on this mask pop off and go back on. A bayonet fitting holds them in place. Match the cartridge to the job. Particles are one option. Organic vapors (OV) and acid gases (AG) are others, and gas mixes work too. The goggle section keeps working at the same time. Chemical splash gets blocked from the eyes. So do dust and airborne particles. Where breathing hazards and eye hazards sit side by side, this setup earns its place.

Standard Specifications

Product Features

Integrated Goggle Design

The goggle unit clips straight onto the mask frame. Breathing and eye protection then come as one piece. No more squeezing separate safety glasses over or under a half mask. That old habit can break the seal on both items.

Reusable Elastomeric Facepiece

The skirt is moulded from silicone or TPE. It presses firmly on the face. Less air gets away than with disposable filtering facepieces. Disinfect it over and over. Shape holds up. The seal still works.

Wide-Opening Exhalation Valve

CO₂ builds up in the dead space. The exhalation valve has low resistance, so it cuts that buildup down. Heat also collects inside the mask when you wear it for long stretches, and the valve keeps that in check too.

Interchangeable Half respirator mask with goggles Filter System

Swapping cartridges is simple with bayonet connectors. You can move between P100 particulate filters, organic vapor cartridges, acid gas cartridges, and multi-gas combinations. The mask body stays on the whole time.

Low-Profile Build

The frame is slim. That shape lets it fit under welding shields, face shields, and safety visors that people use in industrial settings.

Technical Details

Connector tolerances are held at ±0.1 mm. Cartridges lock in tight because of that, and no air slips past the bayonet interface. Cyclic tension testing pulls the 4-point head suspension system again and again. Results show whether the straps hold their elasticity under stress. Every exhalation valve membrane is checked for a flush seat after each breath cycle. Contaminated air could get back in on the inhale if a seat sat loose.

The silicone facepiece version is rated to work from −40 °C to +60 °C. Heavy dust loading does not break the material down, and the seal will not collapse. Disposable masks often fail on that last point in tough industrial settings.

Set against single-use filtering facepieces, this platform costs less per use over time. Only the filter media needs replacing at intervals. With proper maintenance, the facepiece itself lasts a good deal longer.

Applications for the Half respirator mask with goggles

• Industrial painting and surface coating (automotive, aerospace): go with OV cartridges that have P95 pre-filters. They shield you from VOCs and isocyanates
• Construction and mining (cutting concrete, masonry): P100 filters catch 99.97% of particles at 0.3 microns. That gives you protection against crystalline silica exposure
• Agricultural chemical handling: multi-gas cartridges cover ammonia, methylamine, and acid gases during pesticide mixing or application
• Chemical laboratories and processing plants: covers eyes and breathing at once when splashes and fumes are both present
• Metalworking and welding preparation: the slim frame slips under welding visors and still keeps a tight seal

Certifications

• CE Certification: Half Mask (EN 140:1998)

Ordering Information

Orders for the mask start at 100 pcs. Standard delivery takes 7 days. At the same MOQ, you can request custom logo printing, custom packaging design, and custom printed outer boxes. Contact us about carton dimensions. We can also explain pallet arrangements. Export documentation comes on request as well.

After-Sales Support

Sizing questions can still be answered after your order ships. So can questions about filter compatibility or how to clean your gear. Each quality issue gets looked at on its own.

Cleaning protocol: Take the unit apart before washing. Pull the filter cartridges out. The filters never get washed themselves. Warm water below 50 °C and a neutral detergent, that is what the elastomeric facepiece, Half respirator mask with goggles, needs. Lanolin-based cleaners are out. Acetone is out too. Silicone breaks down when it meets either one. Check the valves before you put it back together.

Frequently Asked Questions

Q: What makes it different from a standard N95 at industrial sites?

A: An N95 blocks particles. That is all it does. You wear it once and throw it away. This product takes another route. The elastomeric facepiece can be used over and over, and it sits tighter on the face. When gases or vapors are present, you swap in a different cartridge. So you get wider coverage against more types of hazards. Cost per use also falls over time.

Q: When do the filter cartridges need changing?

A: Once breathing gets clearly harder, fit a new P100 particulate filter. Gas and vapor cartridges follow a change-out schedule. Set that schedule around the exposure level. Smell or taste the contaminant at any point? Replace them at once.

Q: Will a beard or stubble stop the mask from doing its job?

A: No, it cannot. Hair on the face gets in the way of a tight seal on the mask skirt. The assigned protection factor drops a lot as a result. Tight-fitting respirators need a clean-shaven face under OSHA and EN standards. A loose-fitting powered air-purifying respirator (PAPR) hood is the better pick for bearded workers.

Q: Is a fit test required?

A: Yes. Workplaces covered by OSHA (USA) or HSE (UK) rules need an annual fit test. The test can be quantitative (PortaCount) or qualitative (Bitrex/Saccharin). It confirms that the mask seals correctly to the wearer's face.

Q: What customization options are available?

A: Yes, three options are available. A custom logo can go on the mask body. Your own packaging design is another route. There is also the printed outer box. Customized orders start at 100 pcs MOQ.

Q: Which sizes do you offer, and how do I choose?

A: Two sizes are available: M and L. Check the sizing guide. It uses face width and chin length. Most adult faces fit the M. Wider or longer faces usually do better with the L. If you are unsure, order a sample set and test the fit yourself before placing a bulk order.
